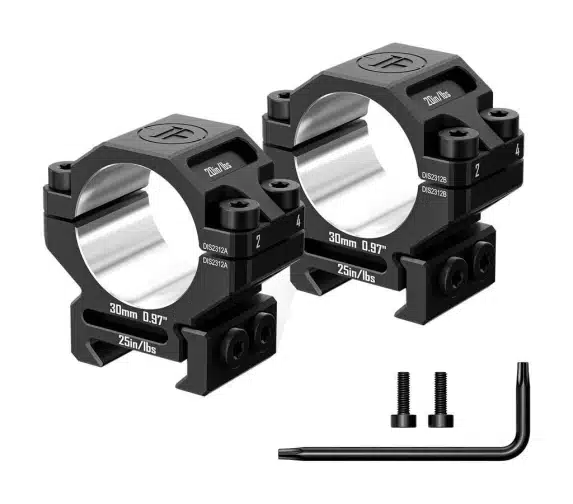

Discovery Scope Mount Rings 6061 Series (30 mm) Low for Picatinny. Height – 9.5 mm

Discovery Scope Mount Rings 6061 (30 mm) Low for Picatinny are manufactured using precision CNC machining from aircraft-grade aluminum 6061-T6, ensuring zero tolerance errors. Each pair of rings is produced together for maximum accuracy and identical alignment.

Features:

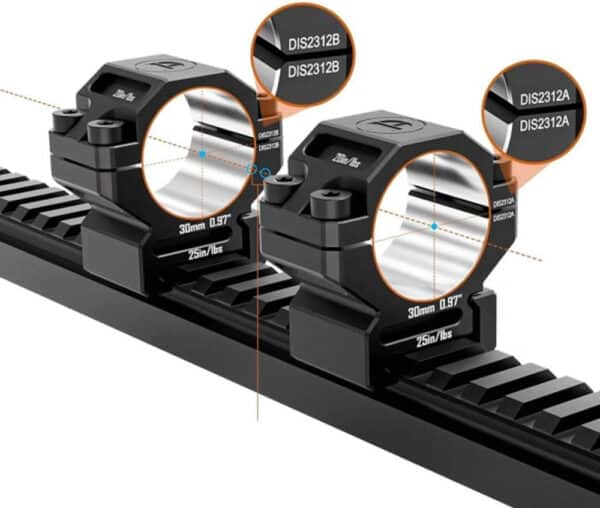

• Perfect alignment – rings are machined in pairs, guaranteeing precise fit on both circular and coaxial surfaces.

• Strength and reliability – each ring is individually numbered, undergoes vibration treatment, bead blasting, and Type III hard-anodizing for enhanced scratch and impact resistance.

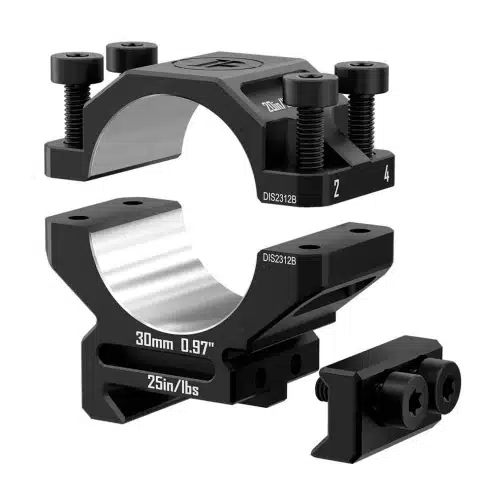

• Reinforced T-20 Torx screws combined with recoil stop pins ensure maximum stability and secure mounting.

Technical Specifications of Discovery Scope Mount Rings 6061 (30mm) Low for Picatinny:

• Ring diameter: 30 mm

• Base height (BH): Low – 9,5 mm

• Height from base surface to optical centerline: 24,5 mm (0,97 in)

• Weight: 144 g

Recommended torque values:

• Base screws: 25 in/lbs

• Ring screws: 20 in/lbs
