SKU: Z14.6.31.090 Category: Brand: Discovery Optics

Riflescope Discovery Optics ED-AR 1-6×24 IR FFP (30 mm, illuminated)

157.00

Free Shipping
SKU: Z14.6.31.090 Category: Brand: Discovery Optics

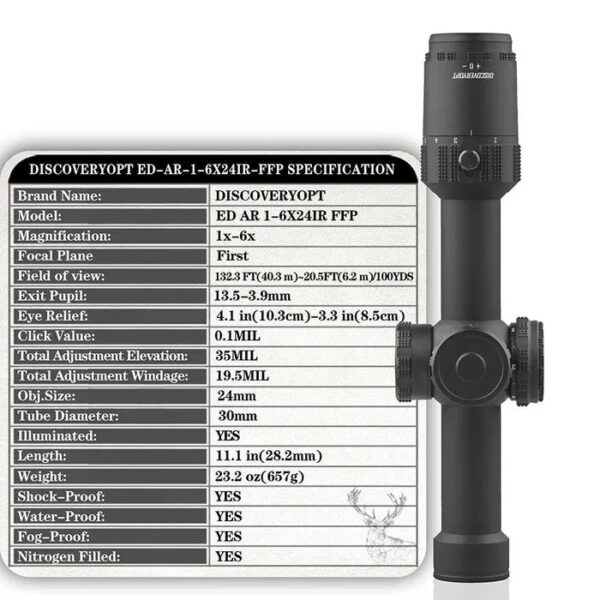

Additional information

Manufacturer

Discovery Optics

Country of origin

China

Model

ED

Tube Diameter

30 mm

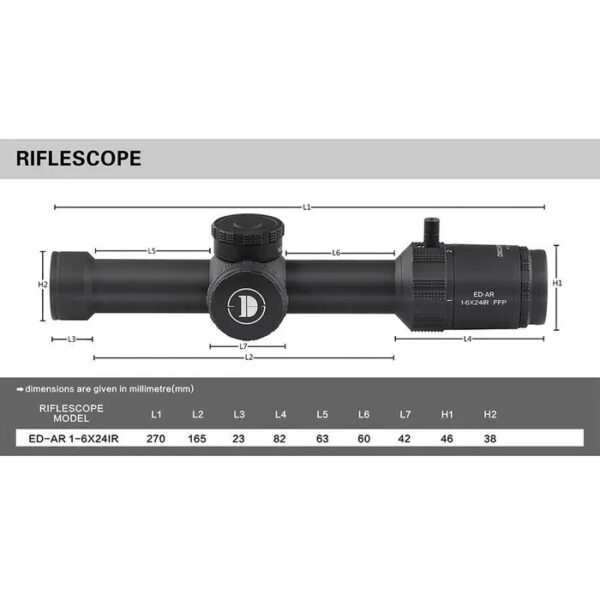

Length (mm)

270

Weight

657 g

Magnification

1–6×

Objective Lens Diameter

24 mm

Exit Pupil Diameter

13.5–3.9 mm

Eye Relief

103–85 mm

Field of View (at 100 m)

42.5–7 m

Field of View (°)

24–4°

Reticle Type

SFIR FFP

Reticle Illumination

Yes

Reticle Color

Red

Reticle Brightness Levels

6

Focal Plane

First

Parallax Adjustment / Focus

Fixed at 100 yards (91.44 m)

Diopter Adjustment

Yes

Click Value (at 100 m)

1/10 MIL

Elevation Adjustment Range

35 MIL

Windage Adjustment Range

19.5 MIL

Lens Coating

Fully Multi-Green Coated

Power Source

1×CR2032 3V

Additional Features

Shockproof; Nitrogen-filled; Waterproof body

Package Includes

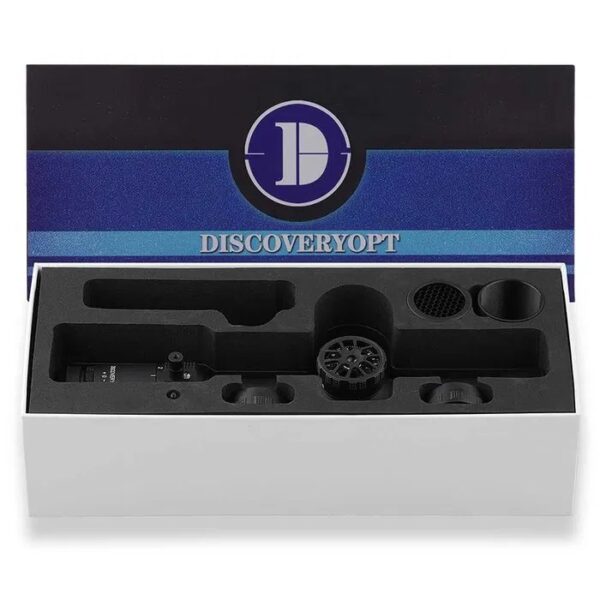

Scope; Manual; Sunshade; Spec Sheet; Protective Caps; Cleaning Cloth; Magnification Adjustment Lever; Honeycomb Sunshade; Cardboard Box

Warranty

12 months

The Discovery Optics ED-AR 1-6×24 IR FFP Riflescope combines versatility and precision, making it ideal for close to mid-range shooting. Its first focal plane (FFP) reticle scales with magnification, allowing accurate holdovers at any zoom level. Additionally, the illuminated reticle ensures fast target acquisition in low-light conditions, while the durable 30 mm tube provides strength and stability under recoil.

Key Features of riflescope Discovery Optics ED-AR 1-6×24 IR FFP 30 mm:

  • Designed for AR-platform rifles but compatible with other firearms.

  • Fast target acquisition and versatile performance in various shooting conditions.

  • High-quality optics: ED FCD100 low-dispersion glass by HOYA ensures minimal chromatic aberration and sharp, vivid images across the field of view.

  • First Focal Plane (FFP) etched reticle with partial illuminated circle (Circle-Dot style) for rapid target tracking and range compensation. Red illumination with 6 brightness levels; “zero” turret positions for quick on/off or restoring previous settings.

  • Durable construction: Aircraft-grade T6-6061 aluminum alloy, machined from a solid billet (Discovery TES technology), with matte anodized finish to resist scratches and impacts.

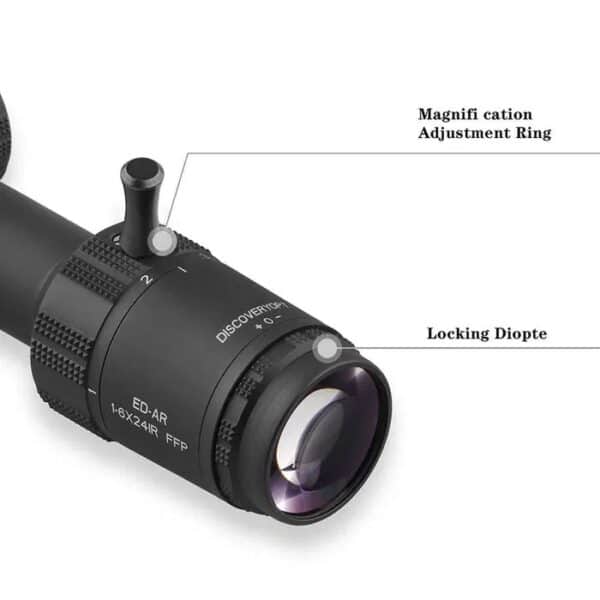

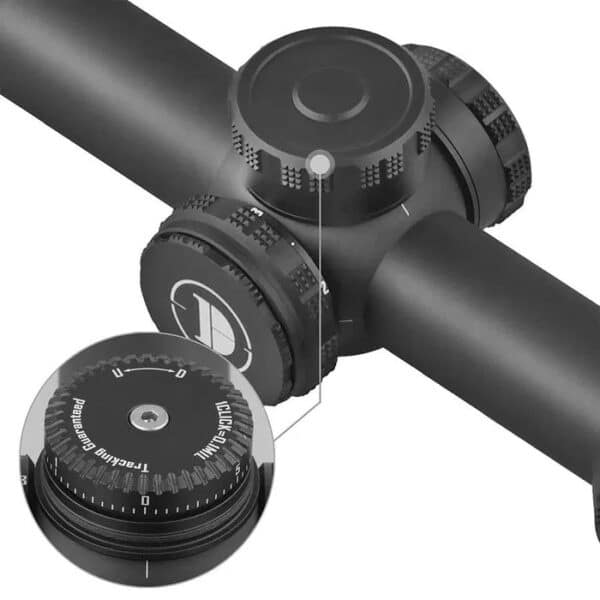

  • Ergonomic controls: Segmented knurling on turrets, magnification rings, and diopter adjustments for precise handling, even with gloves.

  • Fully waterproof and fog-proof: Nitrogen-filled under slight pressure to prevent internal fogging.

  • High recoil tested: Suitable for large-caliber firearms, including .50 BMG.
